Popis

TILTA Cage pre Canon EOS C70

TILTA Cage pre Canon EOS C70 je špeciálne navrhnutý ochranný rám, ktorý zabezpečuje maximálnu stabilitu a všestrannosť pri práci s vašou profesionálnou kamerou. Tento produkt je výnimočný nielen svojou robustnou konštrukciou, ale aj množstvom funkcií, ktoré sú nevyhnutné pre moderné filmové a televízne produkcie. Bez ohľadu na to, či ide o krátke filmy, dokumenty či komerčné projekty, TILTA Cage predstavuje perfektné riešenie pre každého kameramana.

Hlavné vlastnosti

Jedným z najvýznamnejších aspektov TILTA Cage je jeho kompatibilita s Canon EOS C70, čo zabezpečuje dokonalé uchytenie a ochranu vašej kamery pred vonkajšími vplyvmi. Rám je vyrobený z kvalitnej hliníkovej zliatiny, ktorá zaručuje nízku hmotnosť bez zníženia pevnosti a odolnosti.

Rám je vybavený množstvom montážnych bodov, vrátane štandardných 1/4 a 3/8 závitov, čo umožňuje jednoduché pripojenie rôznych prídavných zariadení, ako sú mikrofóny, svetlá a stabilizátory. Integrovaný NATO rám poskytuje flexibilitu pri montáži dodatočného vybavenia a výhodu rýchlej výmeny príslušenstva.

Prístup k ovládacím prvkom kamery je optimalizovaný, takže kameraman môže pohodlne manipulovať s nastaveniami bez toho, aby musel zložiť rám, čo je zásadné počas natáčania v dynamických podmienkach. Ergonomické držanie rámu zabezpečuje pohodlné používanie aj pri dlhších natáčacích dňoch.

Technické špecifikácie

• Kompatibilita: Canon EOS C70
• Materiál: hliníková zliatina
• Montážne body: 1/4 a 3/8 závity
• Integrovaný NATO rám: áno
• Prístup k ovládacím prvkom: bezproblémový
• Ergonomické držanie: áno
• Optimalizovaná hmotnosť: ≤ 1,5 kg
• Rozmery: 236 x 165 x 56 mm

Praktické využitie

TILTA Cage pre Canon EOS C70 sa osvedčuje v širokom spektre aplikácií. Je ideálny pre dokumentárne natáčanie, kde je potrebná rýchla a efektívna manipulácia s ďalším príslušenstvom, ale aj pre komerčné a filmové produkcie, ktoré vyžadujú stabilitu a flexibilitu pri zázname obrazu. Okrem toho, tento rám môže byť používaný aj v štúdiovej produkcii, kde je dôležitý prístup k ovládacím prvkom kamery.

Vďaka jeho robustnej konštrukcii a ergonomickému dizajnu je TILTA Cage skvelým nástrojom pre moderných filmárov, ktorí hľadajú produkt, ktorý im poskytne dôveru v akýchkoľvek podmienkach. Akékoľvek natáčanie, ktoré si vyžaduje mobilitu a variabilitu, môže byť s pomocou tohto produktu opäť o niečo jednoduchšie a efektívnejšie.

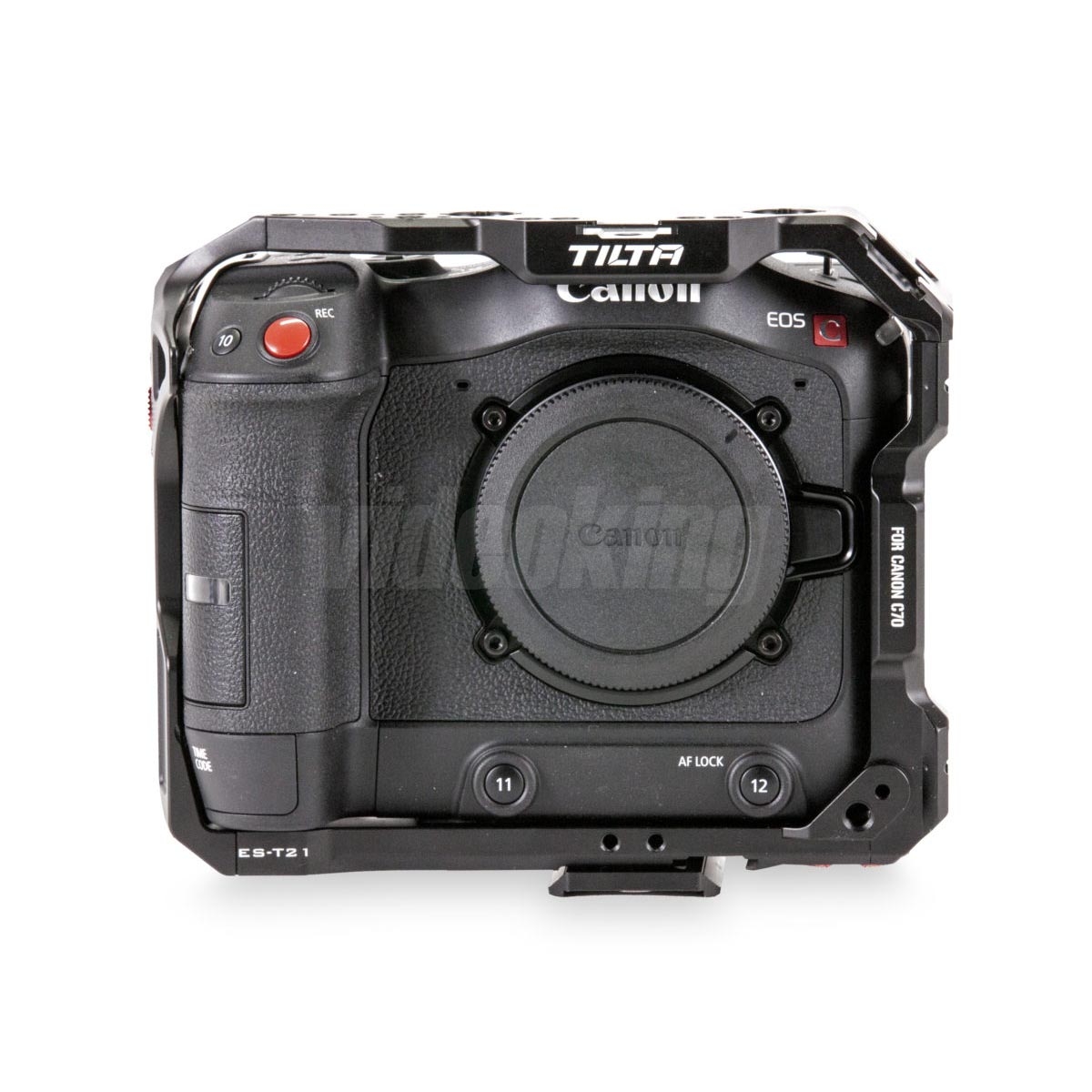

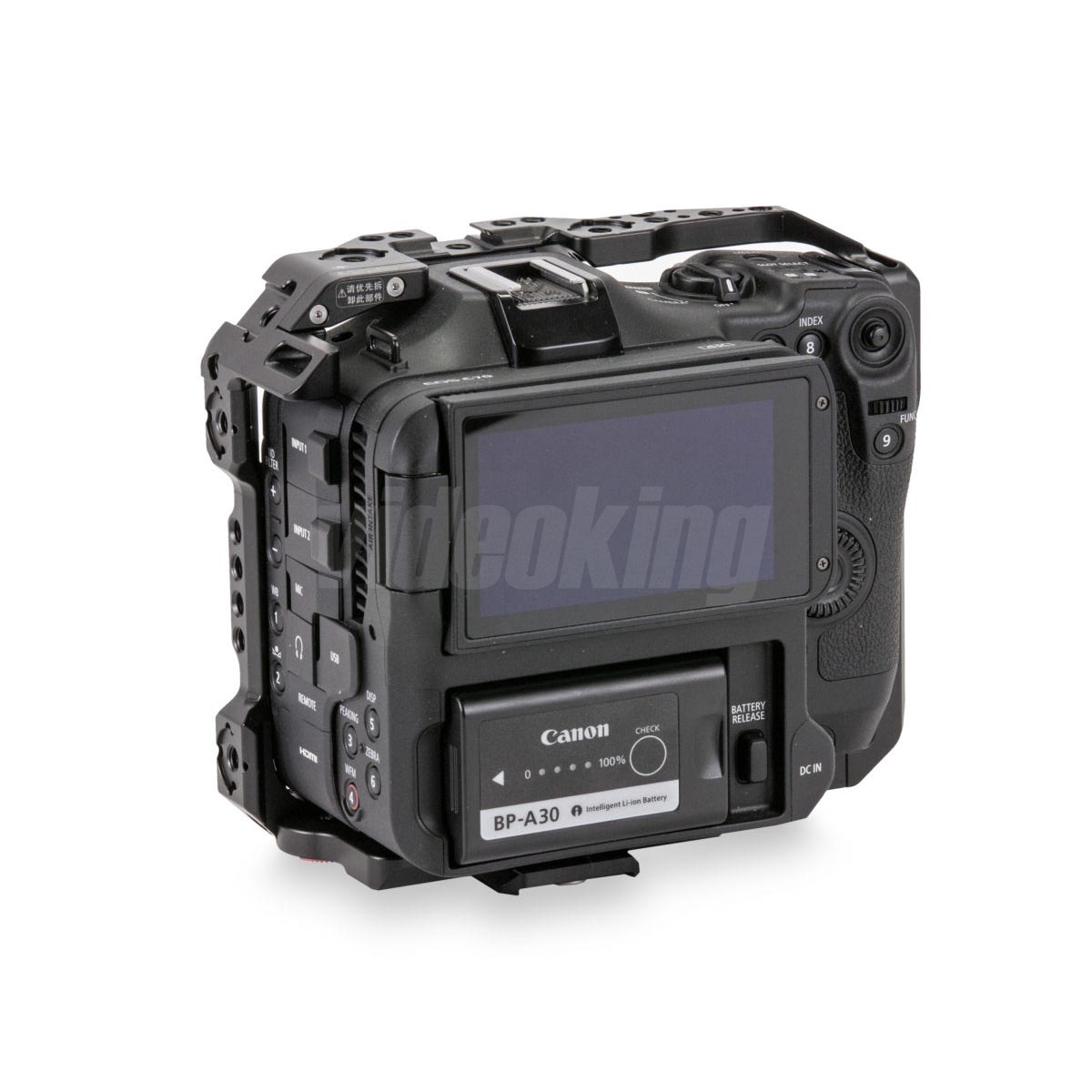

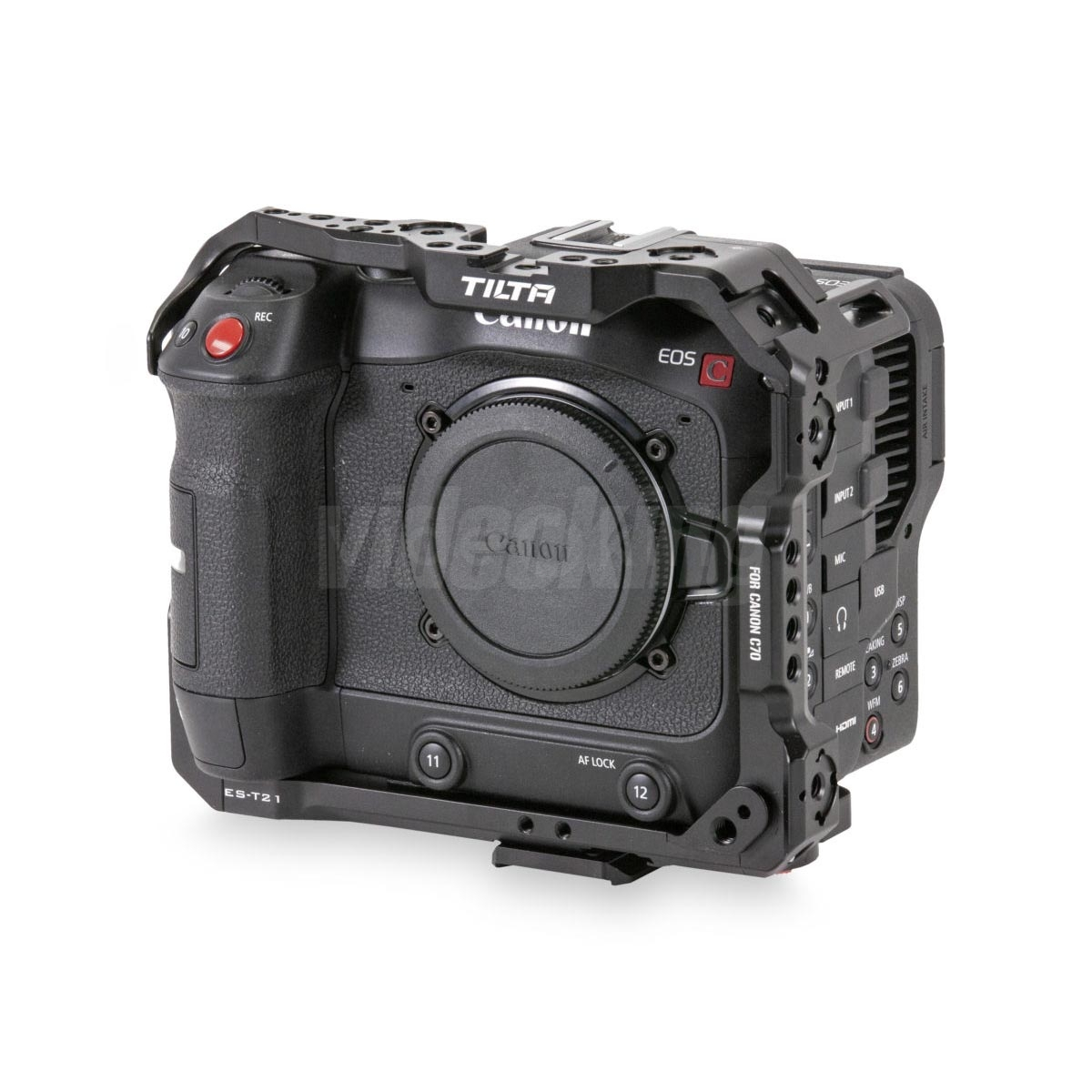

This Full Camera Cage provides protective armor for the Canon C70 and allows you to secure different accessories to improve the camera’s functionality.

The Full Cage features several 3/8″-16 and 1/4”-20 threads with locating pins, dual cold shoe receivers, and a NATO Rail for Type IV and VI Side Handles.

It also features two ARRI Compatible Rosette Connections as well as a Rod Attachment Port for our optional Single Rod Holders.

One of these rosettes is uniquely located on the bottom of the cage which allows for our Adjustable Top Handle to be mounted in order to more comfortably shoot vertically.

An additional Security Attachment with an anti-slip cushion is located in the top left corner of the cage.

This creates an additional point of contact between the cage and camera body.

The Bottom Plate provides 1/4″-20 threads for attaching your camera to various quick release plates and is compatible with the ARCA Receiver of the RS2 Mounting Plate.

The included EF Mount Lens Adapter Support mounts to front of the cage to provide an additional point of contact to support an RF to EF Adapter.

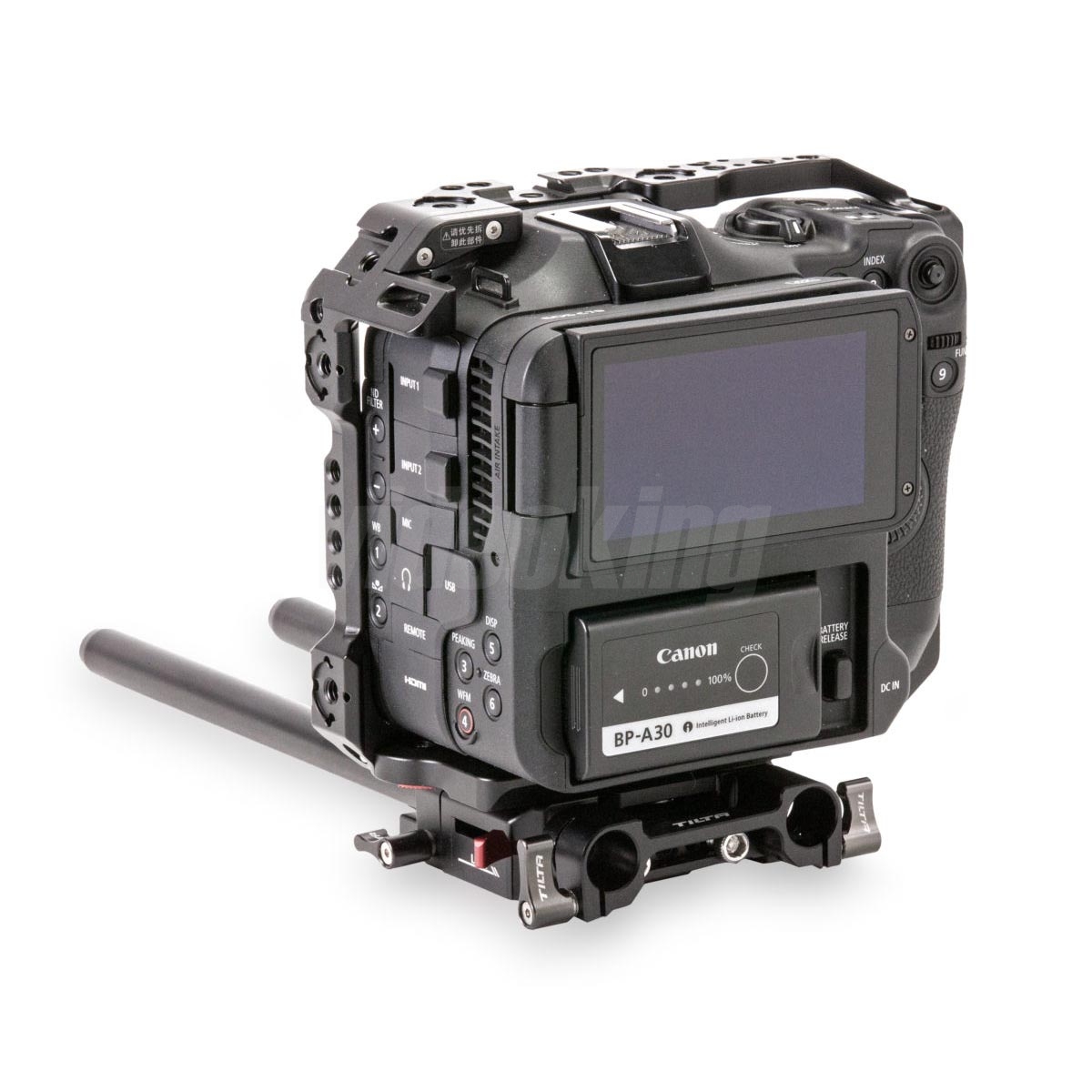

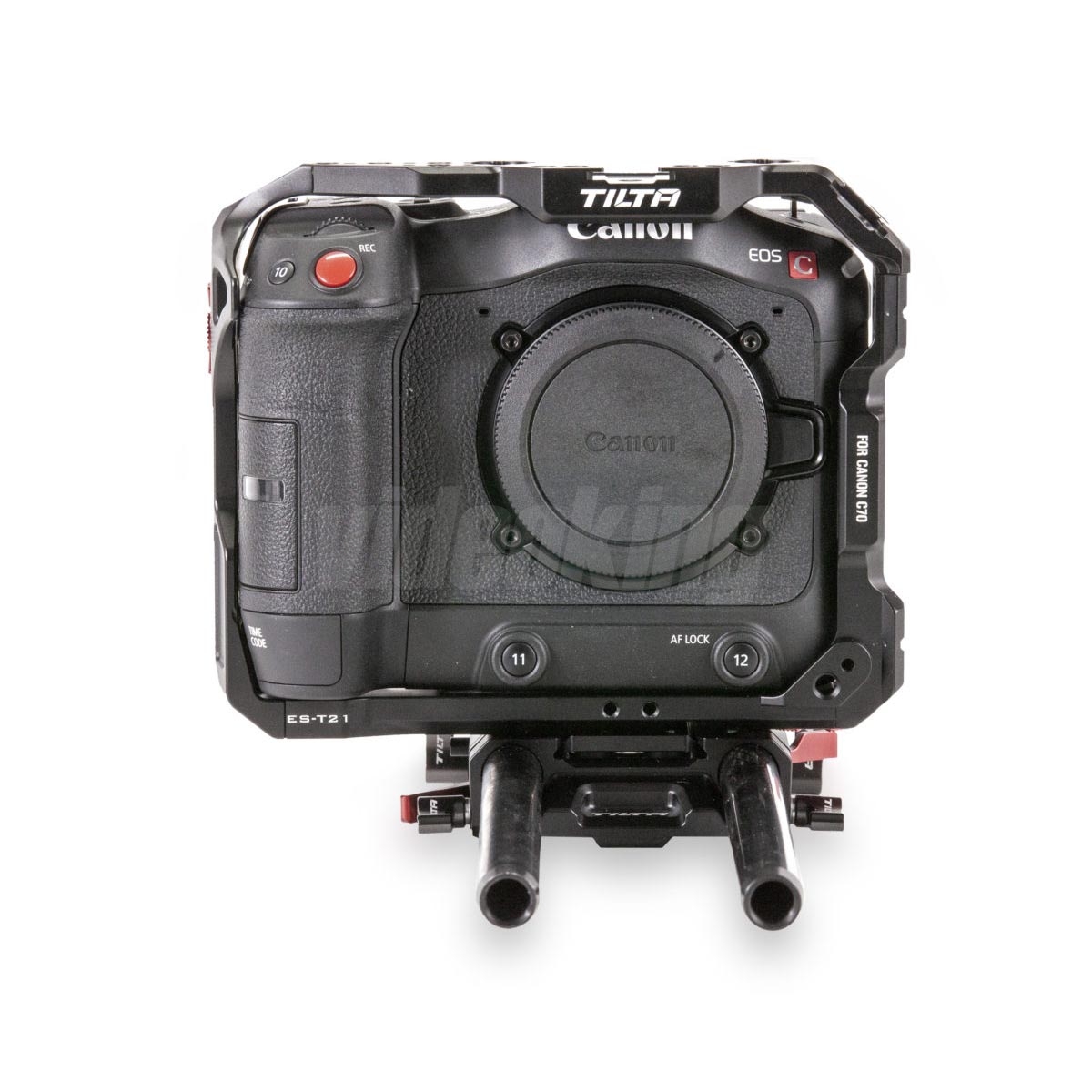

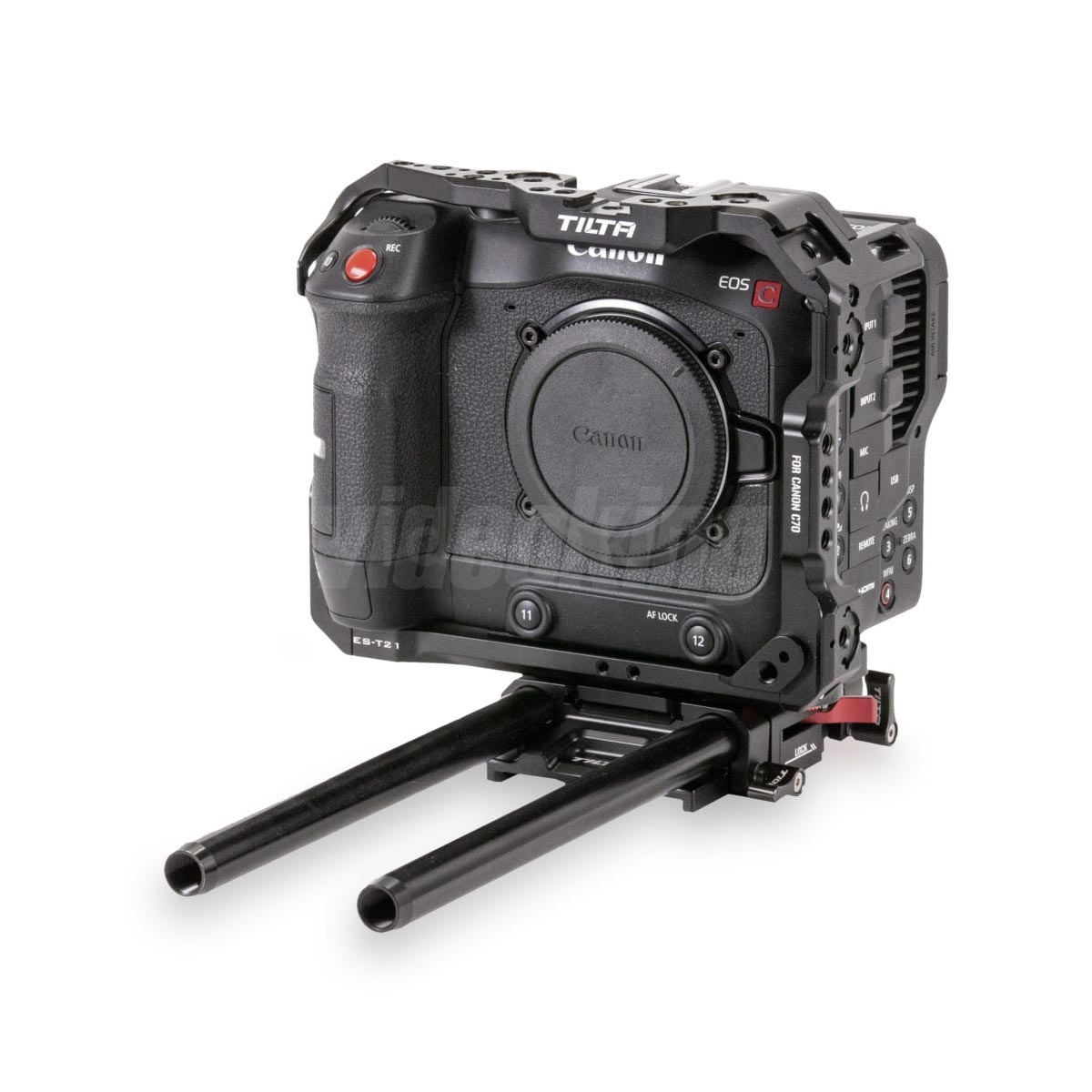

This Lightweight Kit provides protective armor for the Canon C70 and includes relevant accessories to improve the functionality of the C70 while remaining lightweight.

The Full Cage features several 3/8″-16 and 1/4”-20 threads with locating pins, dual cold shoe receivers, and a NATO Rail for Type IV and VI Side Handles.

It also features two ARRI Compatible Rosette Connections as well as a Rod Attachment Port for our optional Single Rod Holders.

One of these rosettes is uniquely located on the bottom of the cage which allows for our Adjustable Top Handle to be mounted in order to more comfortably shoot vertically.

An additional Security Attachment with an anti-slip cushion is located in the top left corner of the cage and creates an additional point of contact for added security.

The Bottom Plate provides 1/4″-20 threads for attaching your camera to various quick release plates and is compatible with the ARCA Receiver of the RS2 Mounting Plate.

The included EF Mount Lens Adapter Support mounts to front of the cage to provide an additional point of contact to support an RF to EF Adapter.

The 15mm LWS Baseplate Type V adds 15mm rod support to the system and allows you to mount rod based accessories such as matte boxes and follow focus systems.

The low profile of this baseplate was specifically designed to accommodate the unique height of the C70 and to perfectly align with the sensor’s optical center.

The bottom of the baseplate natively connects to our Tilta Standard Dovetails and also supports various quick release plates via 1/4″-20 and 3/8″-16 threads.

Please note: the 15mm LWS Baseplate Type V features separated front and back rod mounts that are not connected.

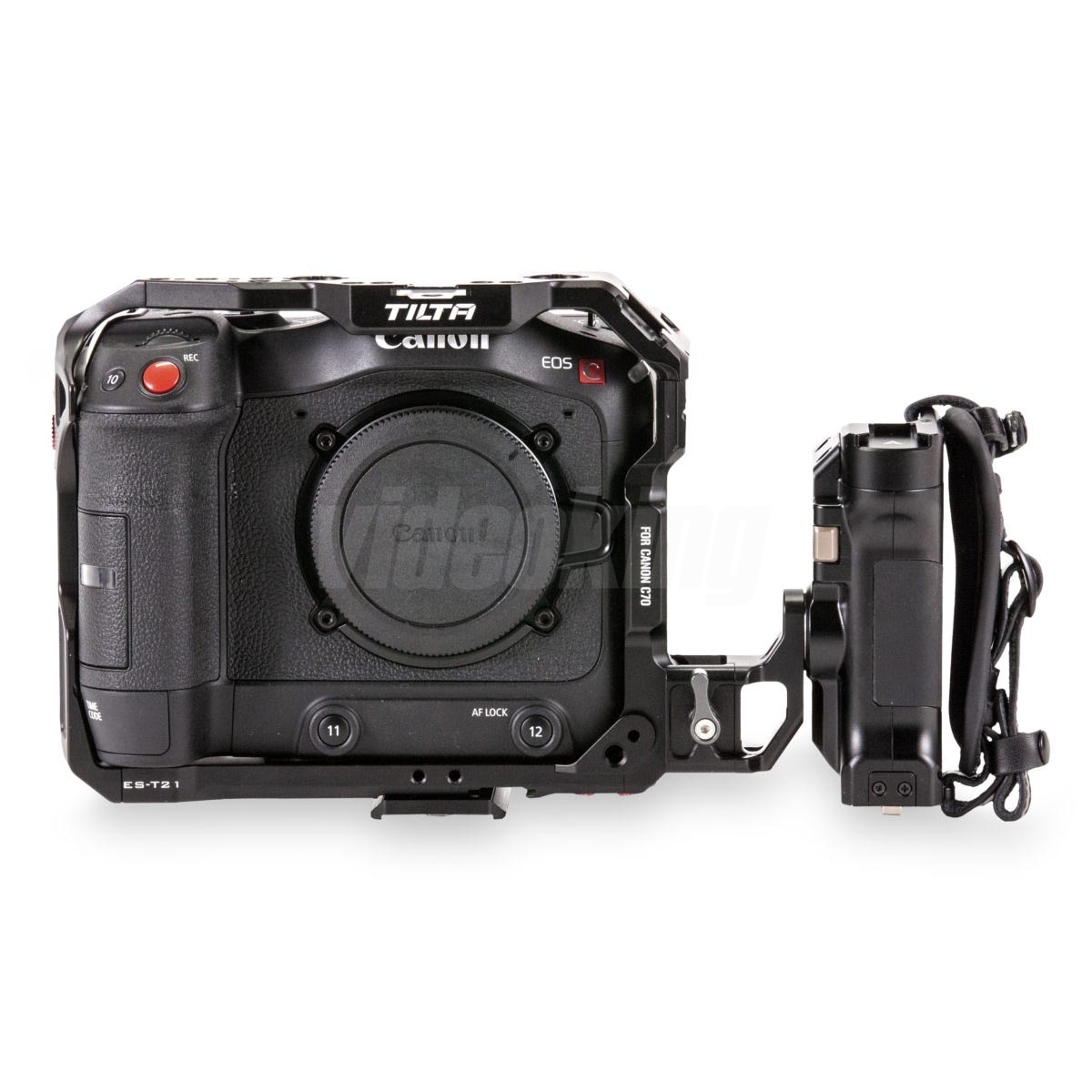

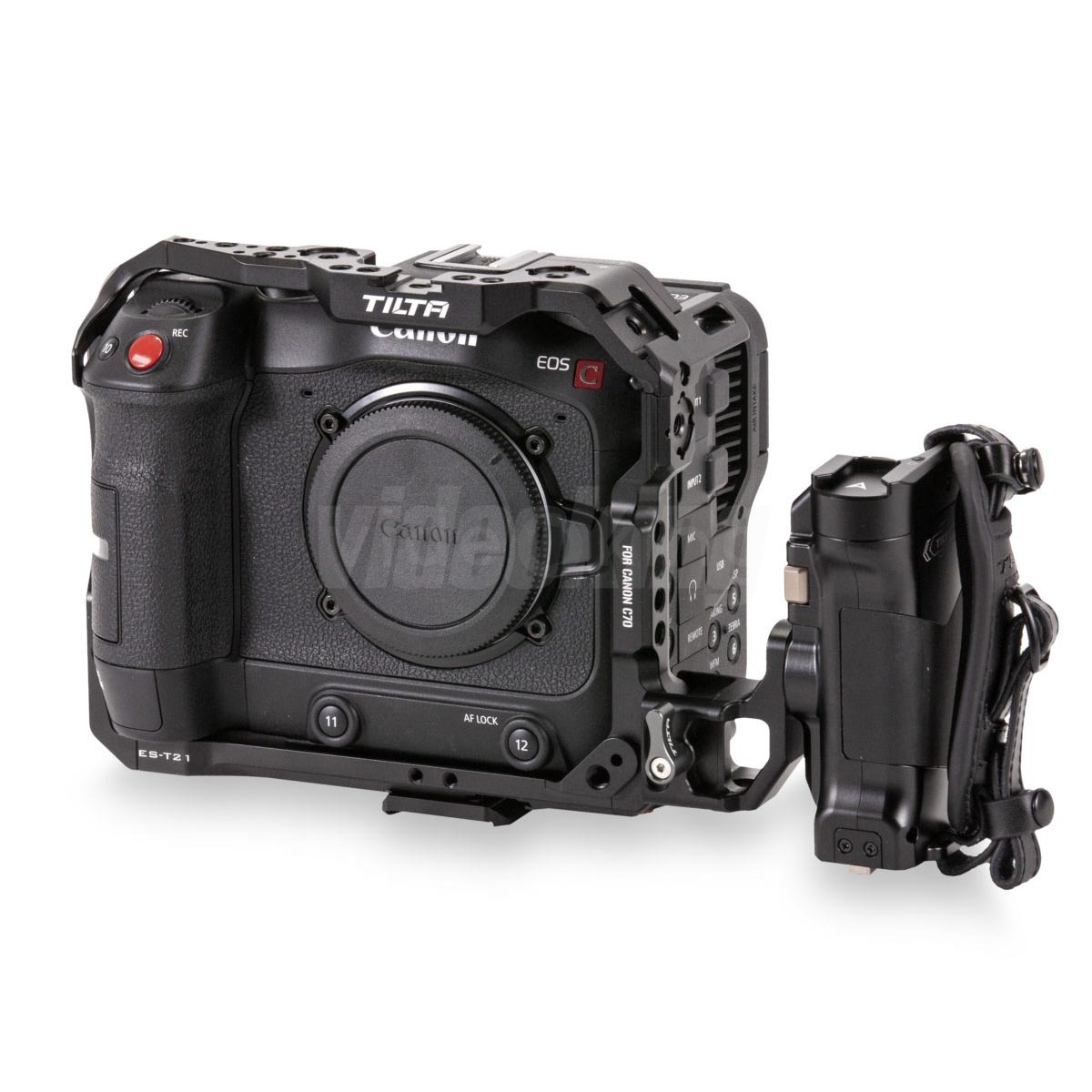

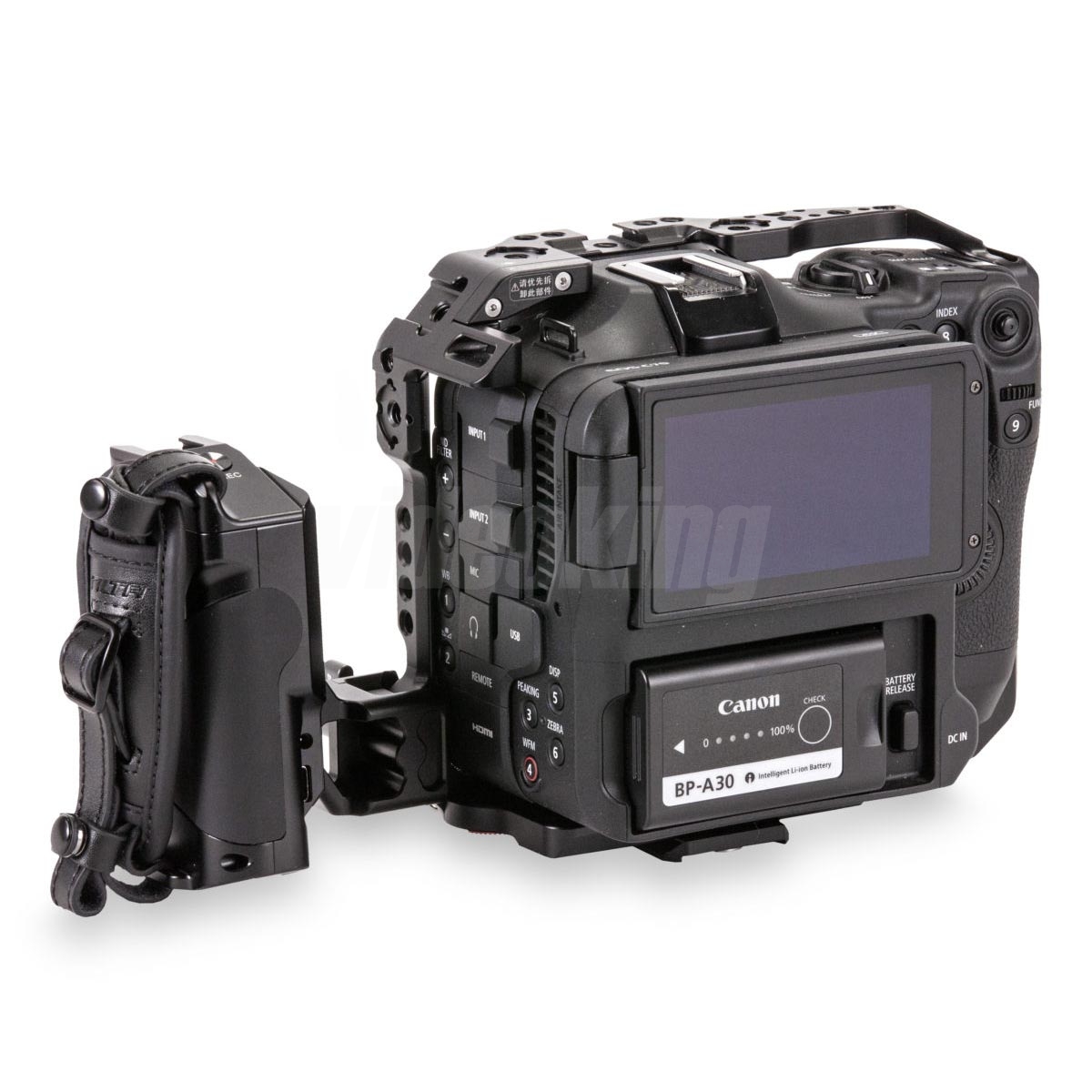

This Handheld Kit provides protective armor for the Canon C70 and includes relevant accessories to improve the functionality of the C70 when shooting handheld.

The Full Cage features several 3/8″-16 and 1/4”-20 threads with locating pins, dual cold shoe receivers, and a NATO Rail for Type IV and VI Side Handles.

It also features two ARRI Compatible Rosette Connections as well as a Rod Attachment Port for our optional Single Rod Holders.

One of these rosettes is uniquely located on the bottom of the cage which allows for our Adjustable Top Handle to be mounted in order to more comfortably shoot vertically.

An additional Security Attachment with an anti-slip cushion is located in the top left corner of the cage and creates an additional point of contact for added security.

The Bottom Plate provides 1/4″-20 threads for attaching your camera to various quick release plates and is compatible with the ARCA Receiver of the RS2 Mounting Plate.

The included EF Mount Lens Adapter Support mounts to front of the cage to provide an additional point of contact to support an RF to EF Adapter.

The included Advanced Power Handle mounts to the left side of the cage via a NATO Rail connection.

This handle features a 12V Micro DC Port (3.5/1.35mm) and an 8V USB-C port for powering your camera body or other accessories like our Nucleus Nano Wireless Lens Control System.

The handle is also able control Run Stop on the C70 via an included Run Stop Cable.

The rotation of the handle and additional hand strap allows for comfortable and flexible operation of the Canon C70.

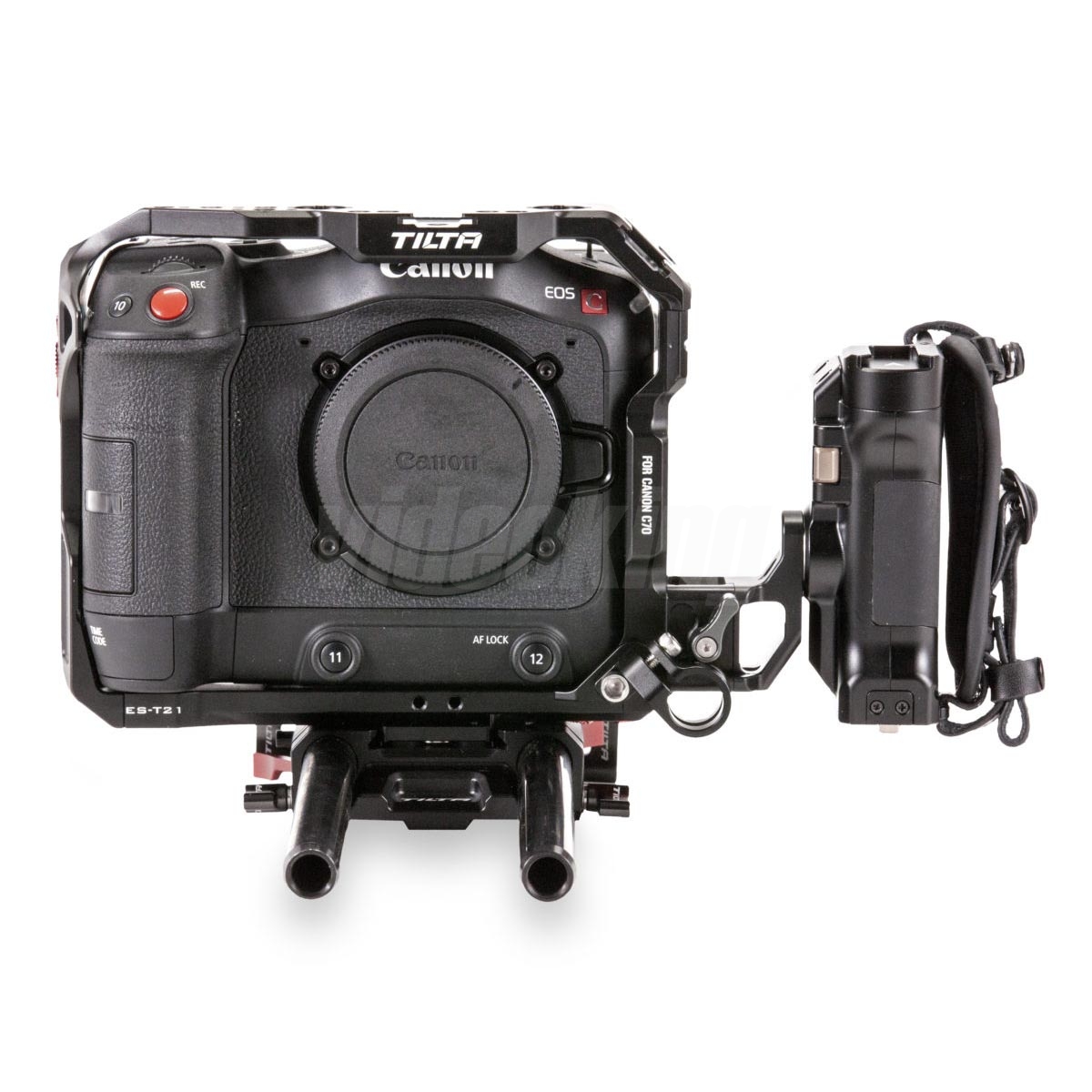

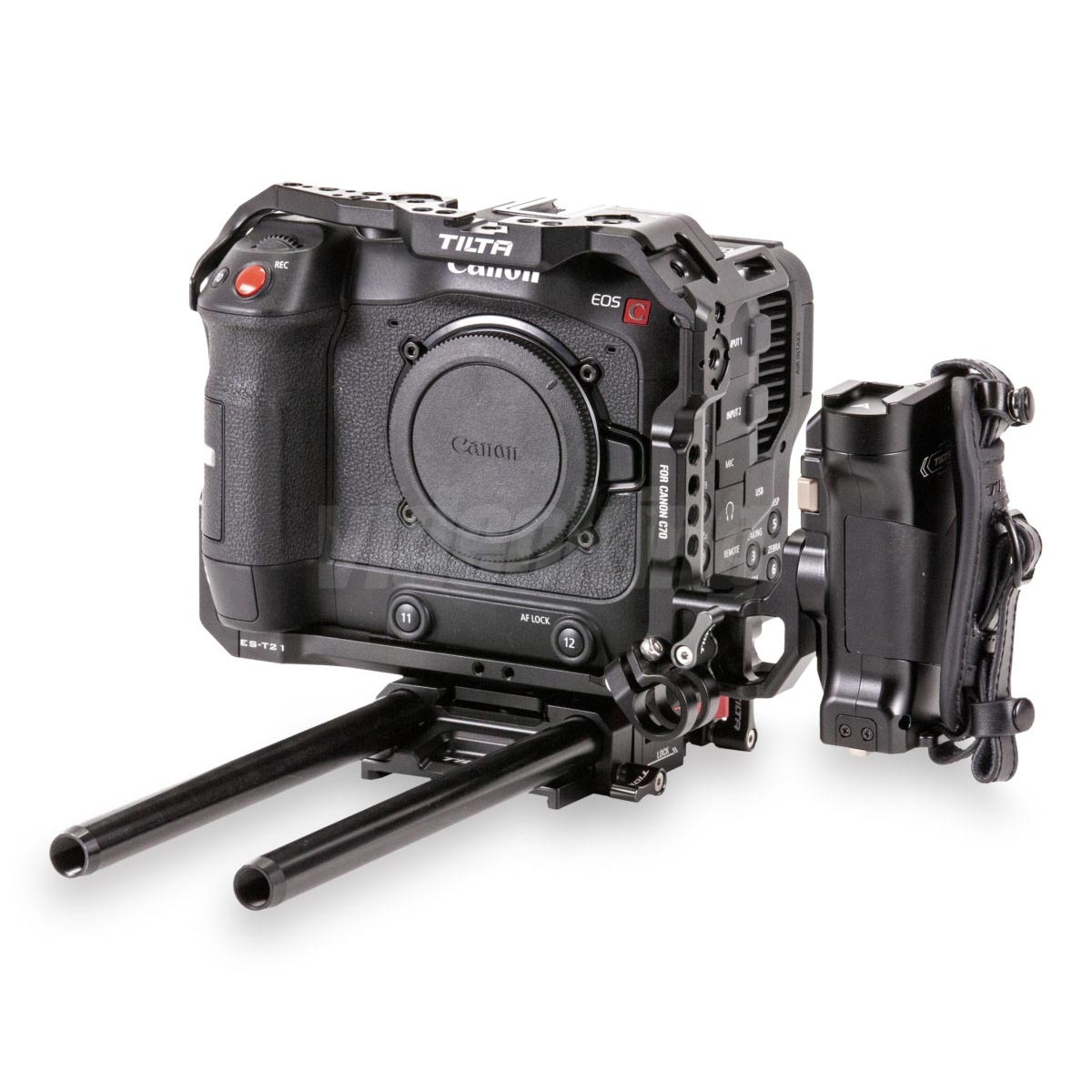

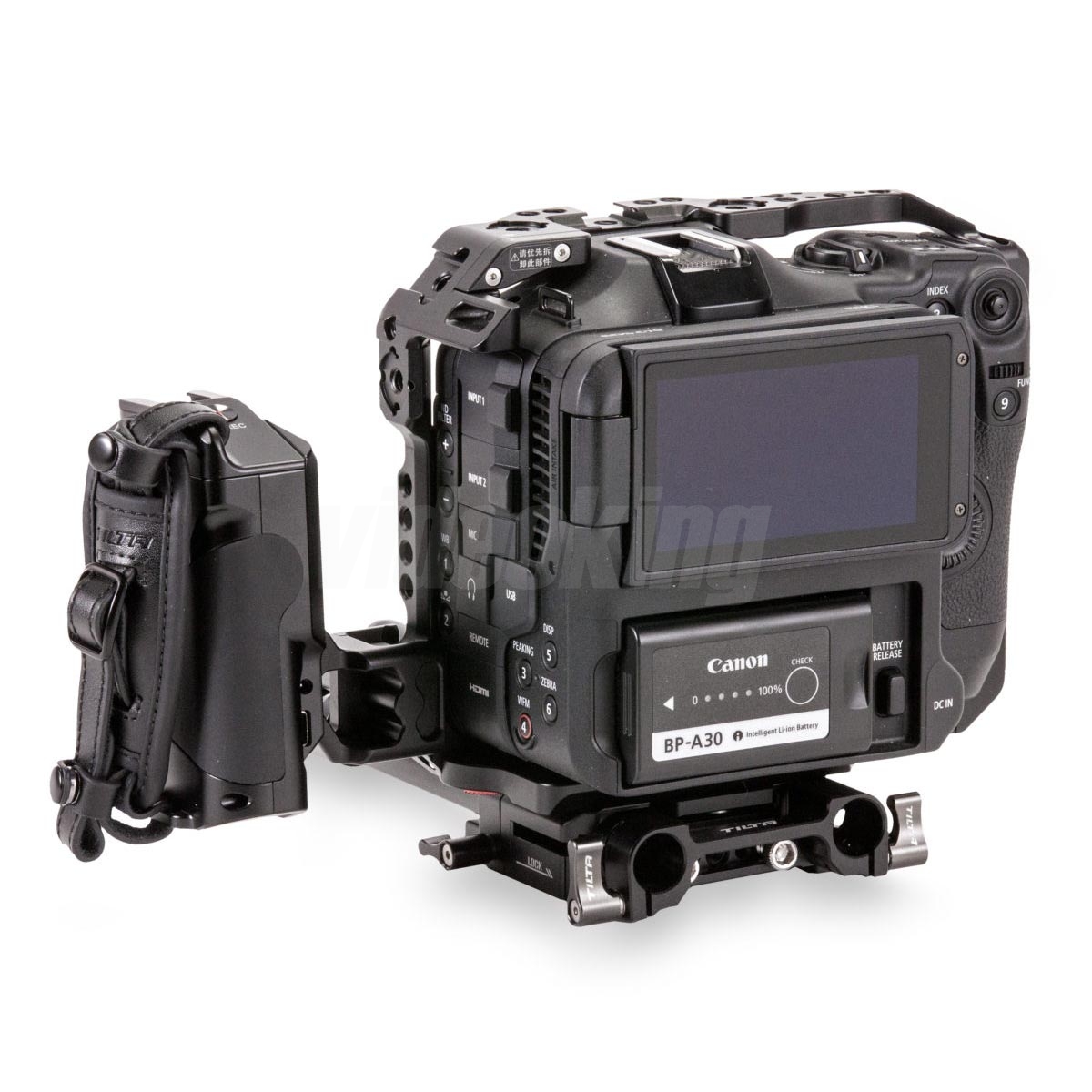

This Advanced Kit provides protective armor for the Canon C70 and includes relevant accessories to greatly improve the functionality of the C70 in a video production environment.

The Full Cage features several 3/8″-16 and 1/4”-20 threads with locating pins, dual cold shoe receivers, and a NATO Rail for Type IV and VI Side Handles.

It also features two ARRI Compatible Rosette Connections as well as a Rod Attachment Port for the included Single Rod Holder.

One of these rosettes is uniquely located on the bottom of the cage which allows for our Adjustable Top Handle to be mounted in order to more comfortably shoot vertically.

An additional Security Attachment with an anti-slip cushion is located in the top left corner of the cage and creates an additional point of contact for added security.

The Bottom Plate provides 1/4″-20 threads for attaching your camera to various quick release plates and is compatible with the ARCA Receiver of the RS2 Mounting Plate.

The 15mm LWS Baseplate Type V adds 15mm rod support to the system and allows you to mount rod based accessories such as matte boxes and follow focus systems.

The low profile of this baseplate was specifically designed to accommodate the unique height of the C70 and to perfectly align with the sensor’s optical center.

The bottom of the baseplate natively connects to our Tilta Standard Dovetails and also supports various quick release plates via 1/4″-20 and 3/8″-16 threads.

The included Advanced Power Handle mounts to the left side of the cage via a NATO Rail connection.

This handle features a 12V Micro DC Port (3.5/1.35mm) and an 8V USB-C port for powering your camera body or other accessories like our Nucleus Nano Wireless Lens Control System.

The handle is also able control Run Stop on the C70 via an included Run Stop Cable.

The rotation of the handle and additional hand strap allows for comfortable and flexible operation of the Canon C70.

The included EF Mount Lens Adapter Support mounts to front of the cage to provide an additional point of contact to support an RF to EF Adapter.

Please note: the 15mm LWS Baseplate Type V features separated front and back rod mounts that are not connected.
