Popis

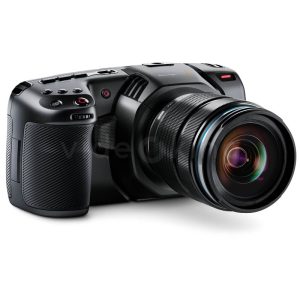

Blackmagic Pocket Cinema Camera 4K

Blackmagic Pocket Cinema Camera 4K sa radí medzi špičkové zariadenia, ktoré poskytujú profesionálny výkon s dôrazom na ultra prenosný dizajn. Táto kamera je ideálnym nástrojom pre filmárov, kameramanov a produkčné spoločnosti, ktoré vyžadujú vysokú kvalitu obrazu a flexibilitu v teréne. S pokročilým Blackmagic OS a množstvom funkcií, je navrhnutá tak, aby splnila požiadavky aj tých najnáročnejších profesionálov.

Hlavné vlastnosti

Telo kamery je vyrobené z odolného uhlíkového vlákna, čo zaručuje nízku hmotnosť bez straty pevnosti a stability. Montáž Micro Four Thirds ponúka široké spektrum možnosti objektívov, čo je kľúčové pre kreatívne snímanie v rôznych prostrediach. Kamera podporuje záznam na SD, UHS-II a CFast 2.0 karty, čím zabezpečuje vysokú rýchlosť prenosu dát a efektívny workflow. Ďalšou významnou funkciou je pripojenie USB-C pre externý záznam, čo zaručuje ešte väčšiu flexibilitu pri výbere záznamových zariadení.

5-palcový dotykový displej ponúka intuitívne ovládanie a jasné zobrazenie, čo je nevyhnutné pri práci v rýchlo sa meniacej filmovej produkcii. Kamera tiež poskytuje flexibilné možnosti napájania, čo umožňuje dlhší čas snímania bez prerušenia, a tak sa hodí aj do náročných podmienok, ako sú exteriérové natáčania. S optimalizovaným pražným filtrom a vysokým dynamickým rozsahom (13 EV) získate realistické farby a detaily aj v náročných svetelných podmienkach.

Technické špecifikácie

• Rozlíšenie: 4096 x 2160 (4K DCI)
• Formáty videa: ProRes a RAW
• Montáž: Micro Four Thirds
• Úložisko: SD, UHS-II, CFast 2.0
• Rozhrania: HDMI, USB-C, 3.5mm audio vstup, XLR audio vstup
• Displej: 5palcový dotykový LCD displej
• Rozmery: 118.1 x 138.5 x 88.4 mm
• Hmotnosť: 725 g vrátane batérie
• Napájacie možnosti: batéria LP-E6 a externé napájanie cez USB-C
• ISO rozsah: 100 – 25,600

Praktické využitie

Blackmagic Pocket Cinema Camera 4K je prispôsobená pre široké spektrum profesionálnych aplikácií. Pri dokumentárnych natáčaniach a terénnych projektoch vyniká svojou prenosnosťou a robustnosťou. V televíznej produkcii či online vysielaní oceníte vysokú kvalitu obrazu a možnosti pripojenia k externým záznamovým zariadeniam. V štúdiovom prostredí sa tento model osvedčuje vďaka svojmu dynamickému rozsahu a výsledkom, ktoré dokáže poskytnúť pri zložitých osvetľovacích podmienkach.

Okrem bežnej filmovej produkcie je kamera veľmi užitočná aj pri nahrávaní videí do sociálnych médií alebo firemných prezentácií, kde je potrebná vysoká image kvalita. Jej kompaktné rozmery a všestrannosť sprístupňujú možnosť snímania v priestoroch, ktoré sú pre väčšie kamery neprístupné. Vďaka všetkým týmto výhodám sa Blackmagic Pocket Cinema Camera 4K stáva neoceniteľným nástrojom pre moderných filmárov a produkčné tímy, ktorí hľadajú efektívne a flexibilné riešenie pre svoje projekty.

RECORDING MEDIA
Record using standard SD cards, UHS-II cards or CFast 2.0 media
When it comes to recording, the Blackmagic Pocket Cinema Camera 4K gives you 3 kinds of media to choose from. Images can be recorded on to standard SD cards, faster UHS-II cards or CFast 2.0 cards. High definition video can be recorded using regular inexpensive SD cards. Higher performance UHS-II cards can be used for recording Ultra HD in ProRes at up to 60 frames per second and RAW at up to 30 frames per second. CFast cards can record 12-bit RAW at all supported frame rates. For longer recording times, you can also record directly to an external SSD or flash disk using the built in USB-C Expansion Port. Best of all, there’s nothing proprietary. The files will work with all professional post production software. You can even mount the media cards on your computer and start editing directly from them using the included DaVinci Resolve Studio software

EXPANSION PORT
High speed USB-C connection for direct external recording
The Blackmagic Pocket Cinema Camera 4K features an innovative high speed USB-C Expansion Port. USB-C is fast, flexible and even provides power, so it’s quickly becoming standard on all modern computers and devices. The massive bandwidth of USB-C makes it possible to connect external accessories such as flash drives and SSDs for significantly longer recording times. This can be important when shooting high quality lossless 12-bit RAW or even high frame rate 60 frame per second 4K. Best of all, when you’re done shooting you can use the same drive for editing and post production.

BLACKMAGIC OS
Get the same advanced features as larger cameras
The Blackmagic Pocket Cinema Camera 4K uses the same Blackmagic OS as URSA Mini. That means you get the world’s most advanced camera operating system and many of the same professional features found on larger cameras. If you’re just getting started, you can learn how to use the Pocket Cinema Camera 4K today and move up to an URSA Mini when you’re ready. If you already use an URSA Mini, there’s nothing new to learn. You get a modern touchscreen interface that uses simple tap and swipe gestures to adjust settings, add metadata and view recording status. The Blackmagic OS gives you incredible control of advanced camera features including 3D LUTs for both recording and monitoring, HDR output via HDMI, metadata entry, custom presets, extended video format, Bluetooth remote control, external timecode from the audio input, RAW recording and more.

SUPER LARGE TOUCHSCREEN

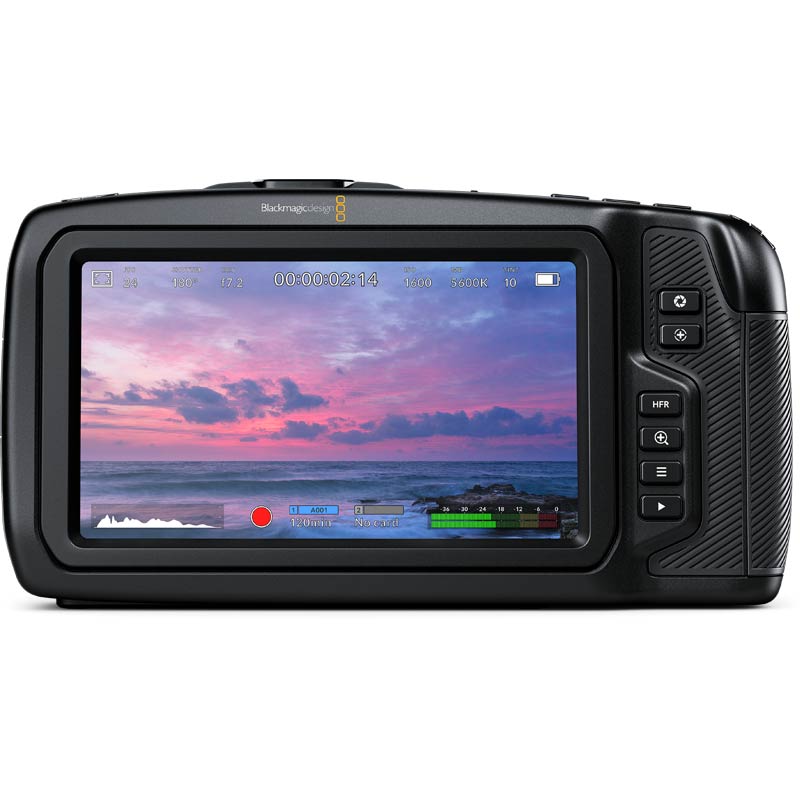

Large and bright 5” touchscreen makes focusing fast and easy
The back of the Blackmagic Pocket Cinema Camera 4K features a super bright, large 5 inch touchscreen. This makes it easy for you to frame shots and accurately focus, without having to carry around an external monitor or viewfinder. You get the same menus and interface found on URSA Mini cameras, including on screen overlays for recording parameters, status, histogram, focus and peaking indicators, and playback controls. In addition, you can apply 3D LUTs so you can monitor the shot with the desired colour and look. Not only can you use the 3D LUT for monitoring, it can even be baked into the recorded footage. There’s even a speaker located near the screen, which makes it easy to quickly play back and review shots on set.

PROFESSIONAL AUDIO
Built in microphones and a mini XLR input
The Blackmagic Pocket Cinema Camera 4K gives you professional high fidelity audio recording so you don’t have to carry around a separate sound recorder. The camera features a mini XLR input with 48 volts of phantom power for connecting professional microphones such as lapel mics and booms. There are also built in microphones with an extremely low noise floor so you can capture great sound on location. There’s even a 3.5mm stereo audio jack so you can use different types of video camera microphones.

ADVANCED CONNECTIONS

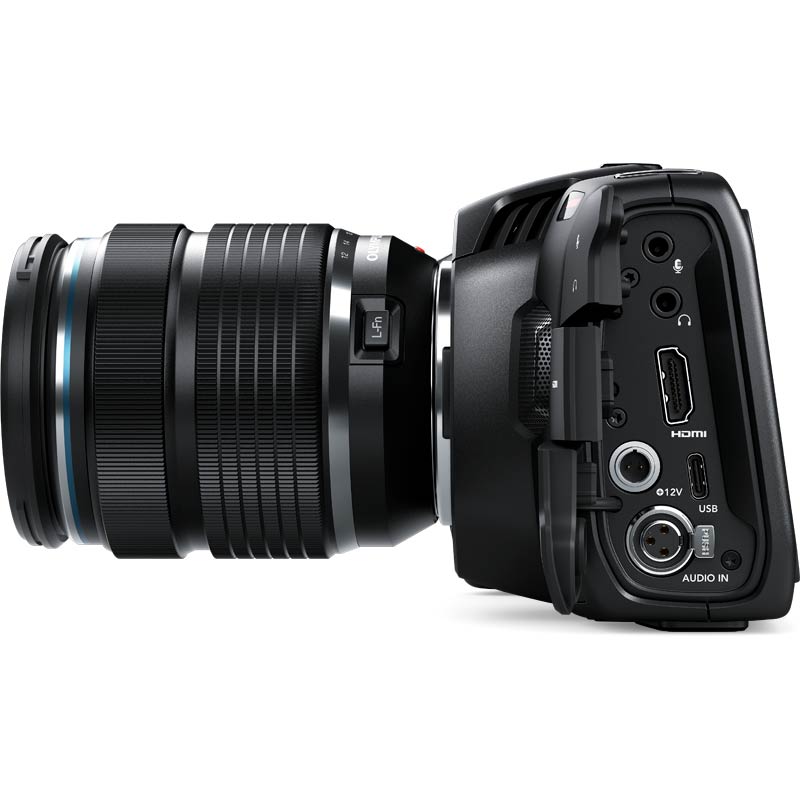

HDMI monitoring, mini XLR audio input, power and more
Even though it’s small and portable, the Blackmagic Pocket Cinema Camera 4K has a full size HDMI connector built in. You get support for advanced features such as HDR output and a clean 10-bit output with on screen overlays showing full camera status, making it perfect for on set monitoring. There’s also a mini XLR connection with 48 volts of phantom power for attaching professional microphones, a 3.5 mm video camera style microphone input and a professional locking DC power connector.

FLEXIBLE POWER OPTIONS
Battery, DC and USB-C so you can shoot all day long
The Blackmagic Pocket Cinema Camera 4K uses standard removable LP-E6 type batteries. You also get a locking DC power connector so it can’t be accidentally disconnected in the middle of a shoot. The included 110 – 220 volt plug pack can be used to simultaneously power the camera and charge the LP-E6 battery. Plus, it includes international socket adapters so it can be used anywhere in the world. The USB-C Expansion Port accepts power so you can charge the battery from portable battery packs, a mobile phone charger or even your laptop computer. The Blackmagic Pocket Cinema Camera 4K gives you a wide range of flexible power options so you can shoot all day.

INCLUDES DAVINCI RESOLVE STUDIO
Professional editing, visual effects, colour correction and audio post
The Blackmagic Pocket Cinema Camera 4K includes a full version of DaVinci Resolve Studio, which is a complete post production solution. You get the world’s most advanced solution that combines professional editing, colour correction, audio post and visual effects all in one software tool. DaVinci Resolve is used to finish more Hollywood feature films than any other solution, so you’ll get the best possible post production tools to edit native video from your camera and retain every bit of quality. Whether you’re working on major Hollywood feature films, episodic television productions, music videos, commercials or even the latest YouTube shoot, DaVinci Resolve Studio gives you a completely lossless workflow for native editing, colour correction, effects, audio and delivery, so your video always looks as good as possible.

• Effective Sensor Size:
  18.96mm x 10mm (Four Thirds)
• Lens Mount:
  Active MFT mount
• Lens Control:
  Iris, focus and zoom on supported lenses
• Dynamic Range:
  13 Stops
• Shooting Resolutions:
  4096 x 2160 (4K DCI), 3840 x 2160 (Ultra HD), 1920 x 1080 (HD)
• Frame Rates:
  Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 4K DCI, 120 fps in HD windowed
• Focus:
  Focus button turns on peaking, auto focus available using compatible lenses
• Iris Control:
  Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode
• Screen Dimensions:
  5” 1920 x 1080
• Screen Type:
  LCD capacitive touchscreen
• Metadata Support:
  Automatically populated lens data from electronic Micro Four Thirds lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes
• Controls:
  Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button, 1 x Play Button, 1 x Focus Button and 1 x IRIS Button
